    İstenilen gauss değerinde üretilir.

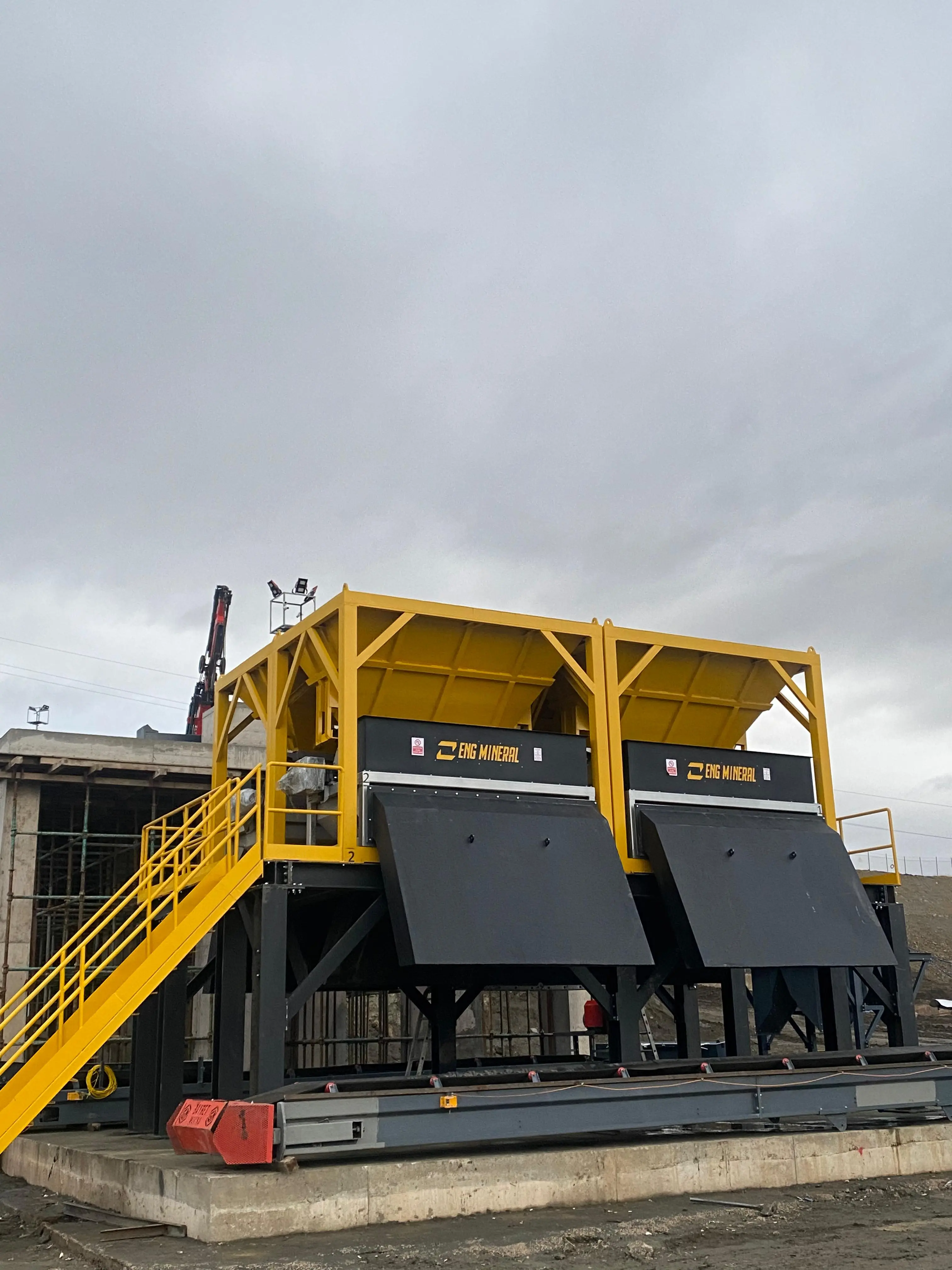

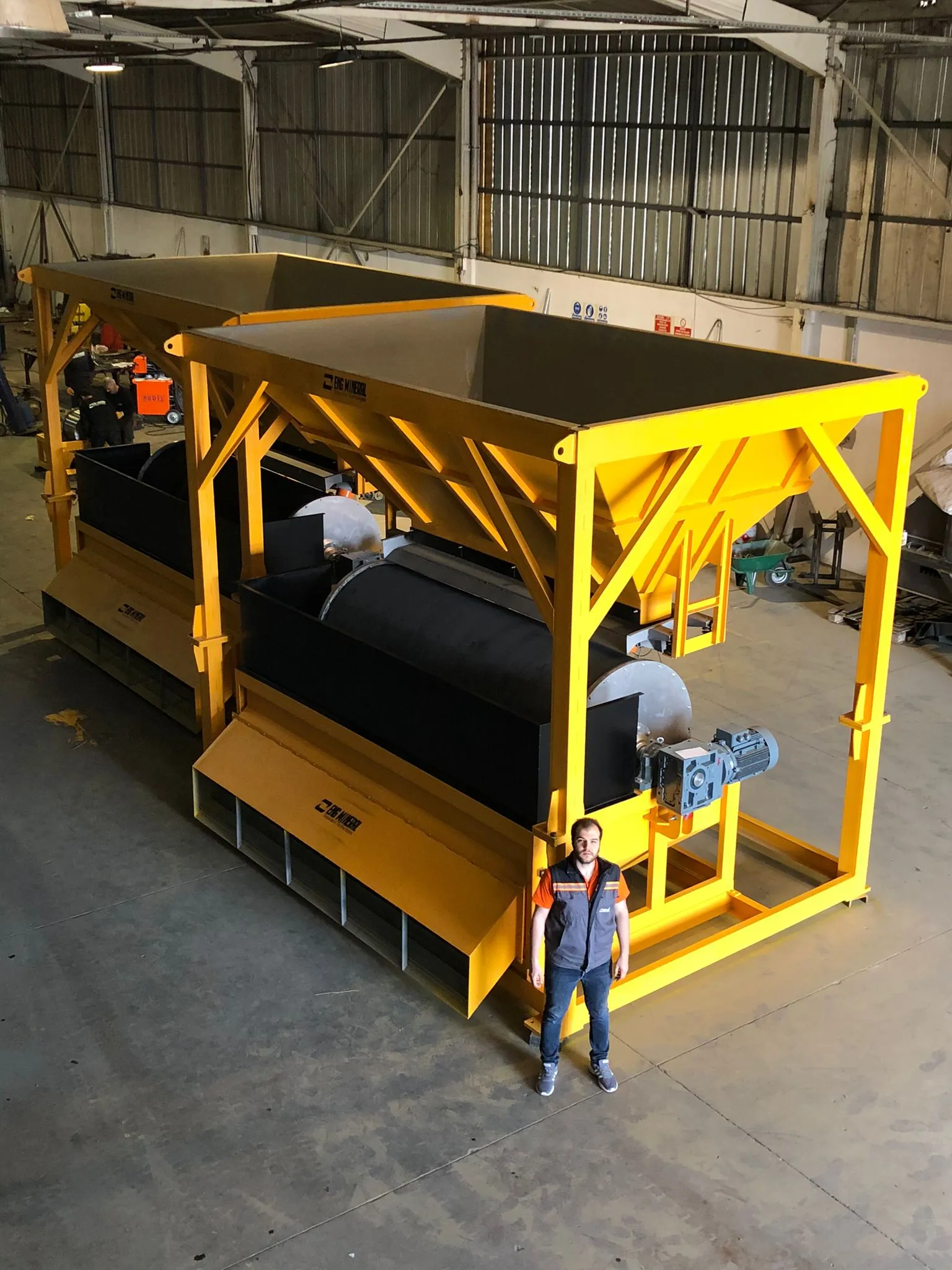

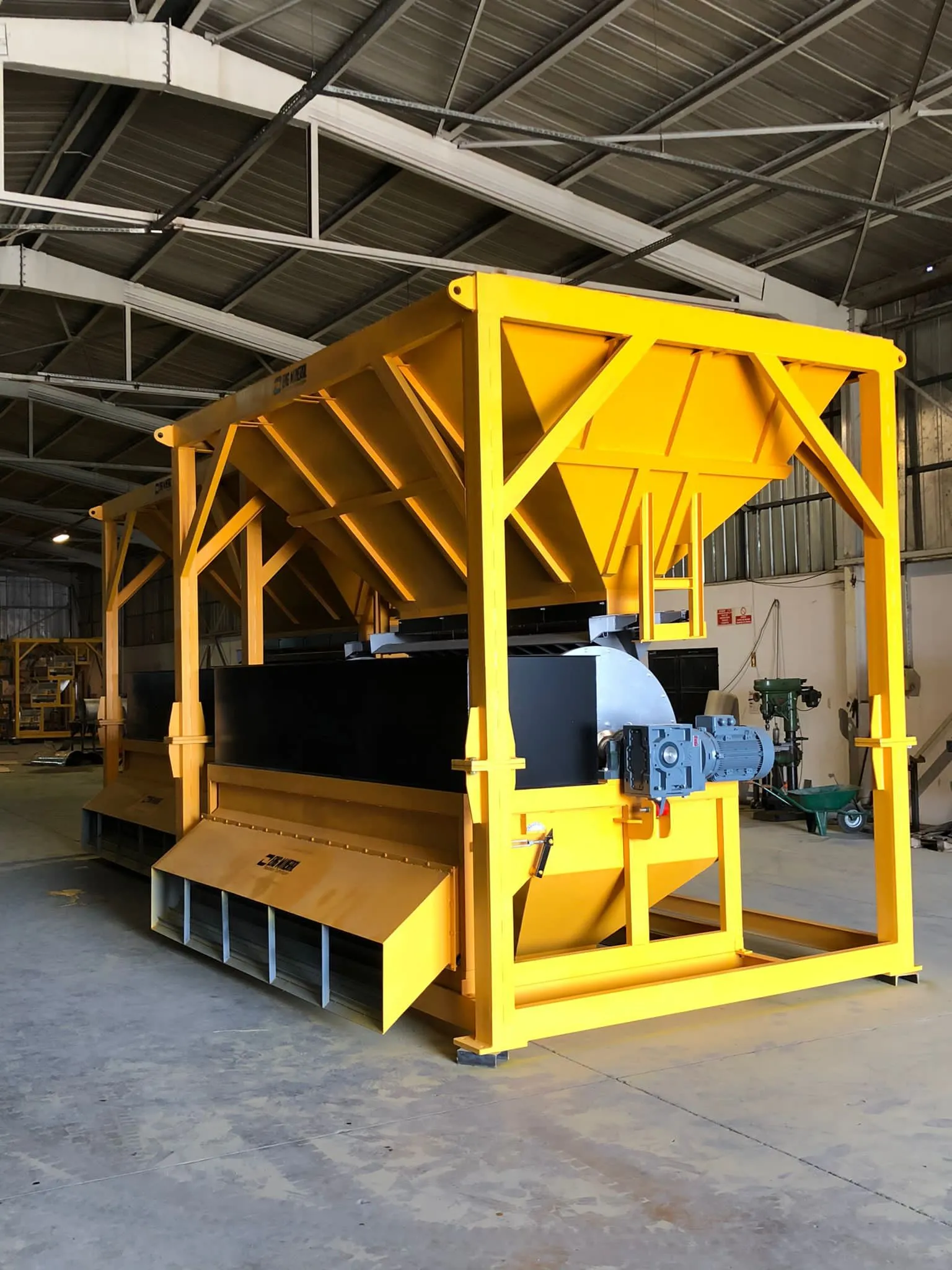

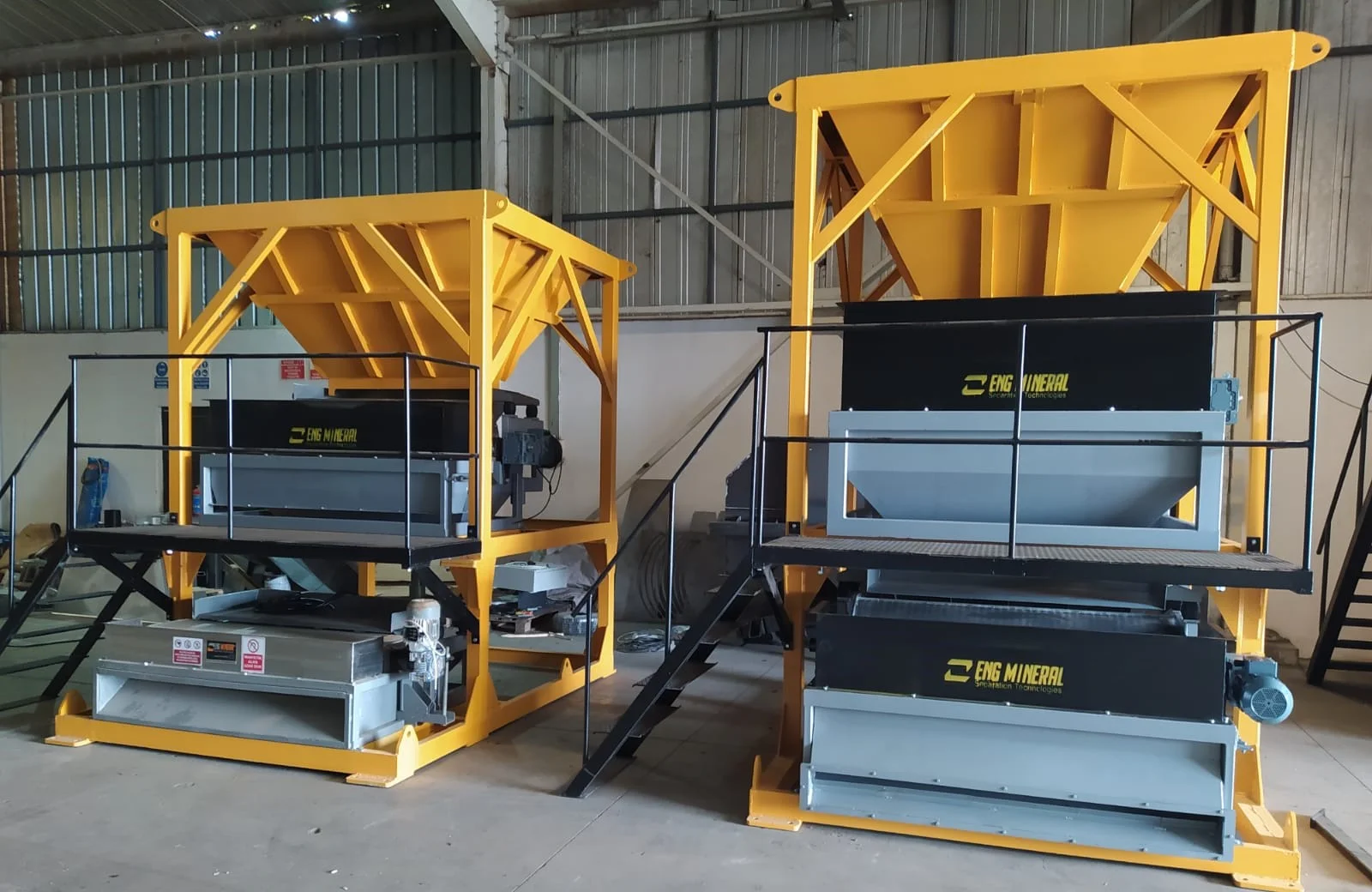

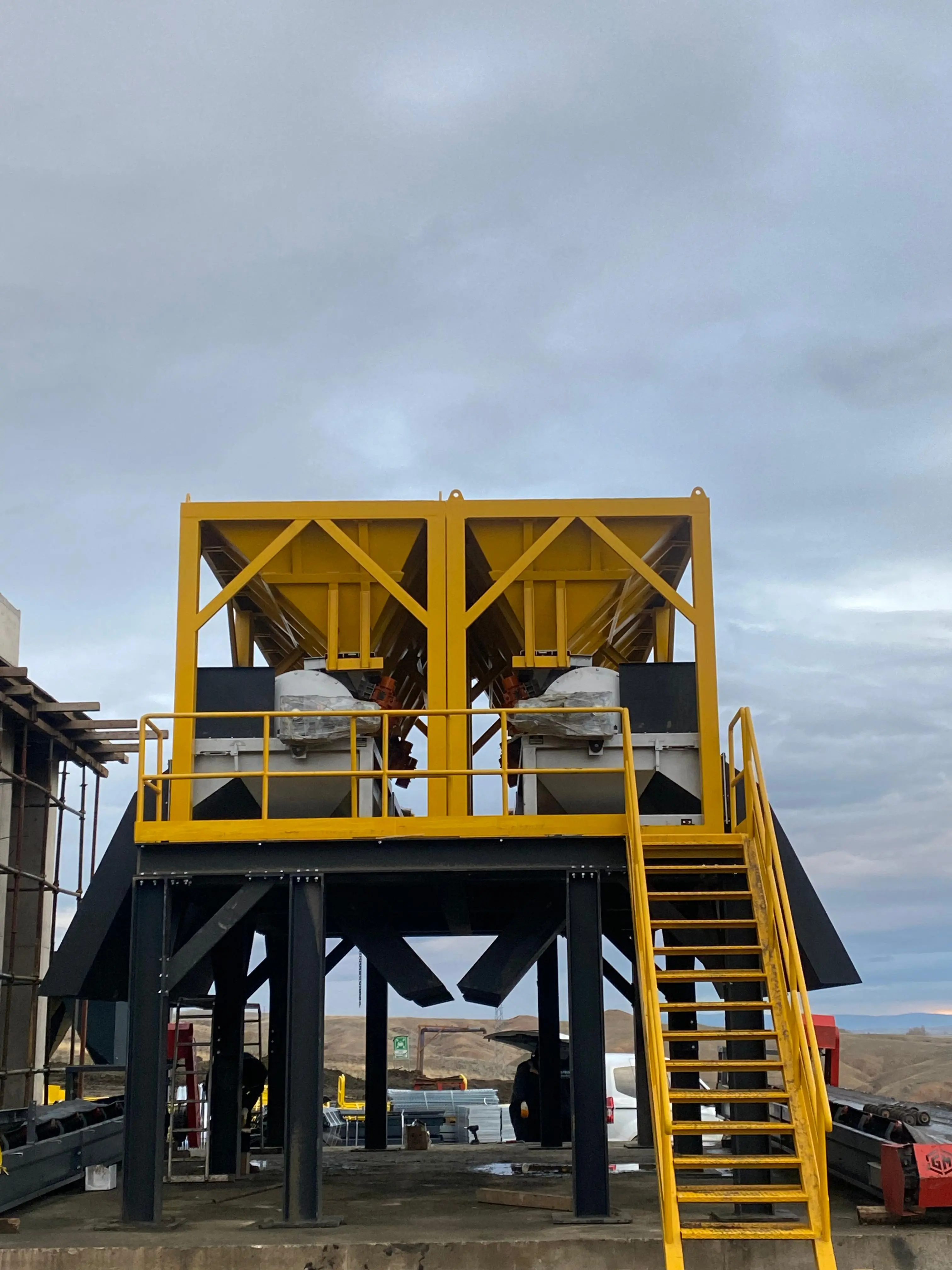

    Drum Magnetic Separator Dry Type

    Our drum magnetic separator is designed to improve
    the efficiency of the overall process in dry separation
    applications. It lightens the load of the roll magnetic
    separator in the process.


    The magnetic drum is designed to separate large and
    small particles of iron from the process.


    We can manufacture radial and axial arrangement
    according to customer demand.


    Easy to install/commission in existing plant.
    Multiple separator designs are available.

    WORKING PRINCIPLE

    The material to be fed is fed homogeneously on the
    surface of the drum with the help of vibrofeeder.


    The magnetic field on the drum surface attracts and
    keeps the iron particles in the drum armor. As the
    drum rotates, the magnetic material is carried over
    the armor through the area covered by the magnet.


    The non-magnetic material is thrown away from the
    armor surface in the direction of rotation by
    centrifugal force.

    PROPERTIES
    The dry drum magnetic separator is ideal for the
    purification of dry granular materials for particle sizes
    from +1 to -500 mm.


    Thanks to its compact design, drum sizes can be produced
    in the 300-1200 mm diameter range and 1500-3000 mm
    width.


    It is available with ferrite or neodymium magnet options

    ADVANTAGES OF DRY MAGNETIC
    DRUM SEPARATOR
    High feed capacity


    Improved separation performance.


    Low maintenance cost


    Different magnet configurations


    Automatic self-cleaning mechanism


    Suction points for dedusting

    There is no documentation for the product.



    MODEL





    SERİ NO

    (SERİAL NUMBER)



    TAMBUR ÖLÇÜSÜ

    (DRUM DİMENSIONS)

     (mm)



    MOTOR GÜCÜ

    (MOTOR POWER)

     (kW)



    BESLEME TİPİ

    (FEEDİNG TYPE)

    BUNKER+VIBROFEEDER

    ENG-KTMSE-30015Ø300X15001,1✔️
    ENG-KTMSE-63615Ø300X15002,2✔️
    ENG-KTMSE-63620Ø636X20002,2✔️
    ENG-KTMSE-76715Ø767X15004✔️
    ENG-KTMSE-76720Ø767X20004✔️
    ENG-KTMSE-90015Ø900x15004✔️
    ENG-KTMSE-90020Ø900x20005,5✔️
    ENG-KTMSE-90025Ø900x25005,5✔️
    ENG-KTMSE-120015Ø1200x15007,5✔️
    ENG-KTMSE-120020Ø1200x20005,5✔️
    ENG-KTMSE-120025Ø1200x25007,5✔️
    ENG-KTMSE-120030Ø1200x30009✔️

    Our production is available in desired sizes according to the facility to be used and production capacity.
